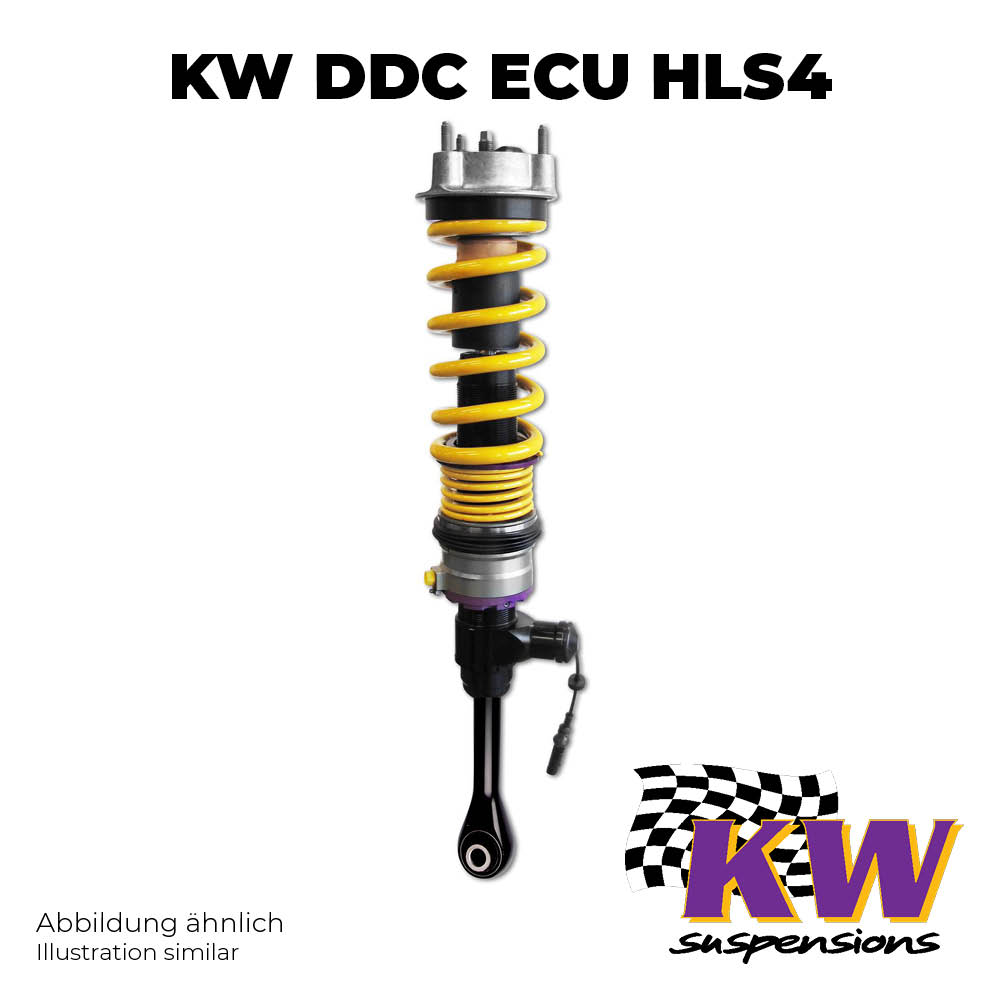

KW DDC - ECU coilovers inox incl. HLS 4 (Comfort|Sport)
Special Price €7,754.59 Regular Price €7,994.42
SKU
KW-39010044-0
| Part Number | 39010044 |
|---|---|
| Brand | KW |
| Front Axle Adjustment | Thread |
| Rear Axle Adjustment | Thread |
| Damping Adjustment | Rebound and Compression Damping |
| Lowering Front [mm] | See application list |
| Lowering Rear [mm] | See application list |
| Front Axle Load [kg] | See application list |
| Rear Axle Load [kg] | See application list |
| Approval | Teilegutachten (§19.3) |
| Year of Construction | See application list |
| Material | Stainless steel |
Conditions and Instructions
Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list
Installation of the HLS pump unit in the spare wheel well, possible problems with the Audi subwoofer
Application List
| Manufacturer | Model | Engine | Year of Construction | Lowering Front [mm] | Lowering Rear [mm] | Front Axle Load [kg] | Rear Axle Load [kg] |
|---|---|---|---|---|---|---|---|
| AUDI | A5 (8T3) | 2.0 TDI - 120kW / 163PS - 1968ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 2.0 TDI - 130kW / 177PS - 1968ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 2.0 TDI - 140kW / 190PS - 1968ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 2.0 TDI quattro - 130kW / 177PS - 1968ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 2.0 TDI quattro - 140kW / 190PS - 1968ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 2.0 TFSI - 132kW / 180PS - 1984ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 2.0 TFSI - 155kW / 211PS - 1984ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 2.0 TFSI - 165kW / 224PS - 1984ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 2.0 TFSI - 169kW / 230PS - 1984ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 2.0 TFSI quattro - 155kW / 211PS - 1984ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 2.0 TFSI quattro - 162kW / 220PS - 1984ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 2.0 TFSI quattro - 165kW / 224PS - 1984ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 2.0 TFSI quattro - 169kW / 230PS - 1984ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 2.7 TDI - 120kW / 163PS - 2698ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 2.7 TDI - 140kW / 190PS - 2698ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 3.0 TDI - 150kW / 204PS - 2967ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 3.0 TDI quattro - 155kW / 211PS - 2967ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 3.0 TDI quattro - 160kW / 218PS - 2967ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 3.0 TDI quattro - 176kW / 240PS - 2967ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 3.0 TDI quattro - 180kW / 245PS - 2967ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 3.0 TFSI quattro - 200kW / 272PS - 2995ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 3.2 FSI - 195kW / 265PS - 3197ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | 3.2 FSI quattro - 195kW / 265PS - 3197ccm | 05/2007-06/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 (8T3) | RS5 quattro - 331kW / 450PS - 4163ccm | 04/2010-06/2015 | 5-30 | 10-30 | -1245 | -1240 |
| AUDI | A5 (8T3) | S5 quattro - 245kW / 333PS - 2995ccm | 06/2007-06/2016 | 15-45 | 15-40 | -1245 | -1240 |
| AUDI | A5 (8T3) | S5 quattro - 260kW / 354PS - 4163ccm | 06/2007-06/2016 | 15-45 | 15-40 | -1245 | -1240 |
| AUDI | A5 Sportback (8TA) | 2.0 TDI - 100kW / 136PS - 1968ccm | 09/2009-12/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 Sportback (8TA) | 2.0 TDI - 105kW / 143PS - 1968ccm | 09/2009-12/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 Sportback (8TA) | 2.0 TDI - 110kW / 150PS - 1968ccm | 09/2009-12/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 Sportback (8TA) | 2.0 TDI - 120kW / 163PS - 1968ccm | 09/2009-12/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 Sportback (8TA) | 2.0 TDI - 125kW / 170PS - 1968ccm | 09/2009-12/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 Sportback (8TA) | 2.0 TDI - 130kW / 177PS - 1968ccm | 09/2009-12/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 Sportback (8TA) | 2.0 TDI - 140kW / 190PS - 1968ccm | 09/2009-12/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 Sportback (8TA) | 2.0 TDI quattro - 125kW / 170PS - 1968ccm | 09/2009-12/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 Sportback (8TA) | 2.0 TDI quattro - 130kW / 177PS - 1968ccm | 09/2009-12/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 Sportback (8TA) | 2.0 TDI quattro - 140kW / 190PS - 1968ccm | 09/2009-12/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 Sportback (8TA) | 2.0 TFSI quattro - 155kW / 211PS - 1984ccm | 09/2009-12/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 Sportback (8TA) | 2.0 TFSI quattro - 165kW / 224PS - 1984ccm | 09/2009-12/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 Sportback (8TA) | 2.0 TFSI quattro - 169kW / 230PS - 1984ccm | 09/2009-12/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 Sportback (8TA) | 2.7 TDI - 120kW / 163PS - 2698ccm | 09/2009-12/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 Sportback (8TA) | 2.7 TDI - 140kW / 190PS - 2698ccm | 09/2009-12/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 Sportback (8TA) | 3.0 TDI - 150kW / 204PS - 2967ccm | 09/2009-12/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 Sportback (8TA) | 3.0 TDI quattro - 160kW / 218PS - 2967ccm | 09/2009-12/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 Sportback (8TA) | 3.0 TDI quattro - 176kW / 240PS - 2967ccm | 09/2009-12/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 Sportback (8TA) | 3.0 TDI quattro - 180kW / 245PS - 2967ccm | 09/2009-12/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 Sportback (8TA) | 3.0 TFSI quattro - 200kW / 272PS - 2995ccm | 09/2009-12/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 Sportback (8TA) | 3.2 FSI quattro - 195kW / 265PS - 3197ccm | 09/2009-12/2016 | 25-55 | 25-50 | 1081-1245 | -1240 |
| AUDI | A5 Sportback (8TA) | S5 quattro - 245kW / 333PS - 2995ccm | 06/2007-06/2016 | 25-55 | 25-50 | -1245 | -1240 |
| Partnumber | 39010044 |
|---|---|
| delivery time | 3-4 weeks |
| Weight | 30.000000 |
| Härteverstellung | Zug- und Druckstufe |
| Ausführung | DDC - ECU + HLS 4 |
