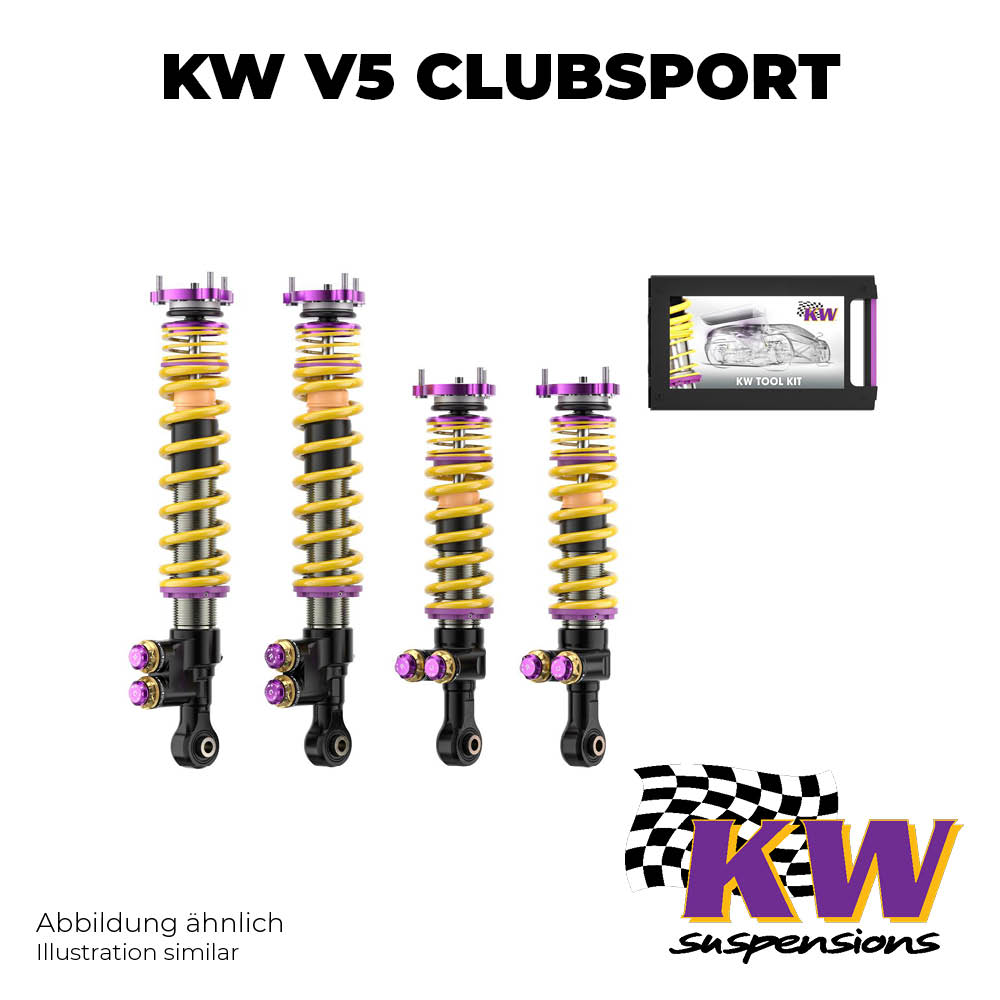

KW Coilover suspension V5 Clubsport incl. support bearings (incl. decommissioning for electric dampers) (Sport|Clubsport|Racetrack)

Sonderangebot 10.058,57 € Normalpreis 10.369,66 €
SKU
KW-30901200EQ-0

Parts certificate (§19.3)

VA + HA height-adjustable (VA coilover struts, HA springs with height adjustment + damper)

When used with standard wheel/tyre combinations, additional commercially available track wideners from the accessories may be required

Shock absorbers have easy-to-use adjustment wheels. Due to the design, the rebound stage can only be adjusted when the piston rod is accessible.

Electronic damper control must be decommissioned. Electronic kit for decommissioning is included in the scope of delivery.

Clubsport suspension with support bearing: only available with VA support bearing

V4 / V5 suspension struts / dampers made of aluminium or combined on each axle made of galvanised steel (VA) and aluminium (HA)

Part Number30901200EQ
BrandKW
Front Axle AdjustmentThread
Rear Axle AdjustmentThread
Damping AdjustmentRebound and compression damping
Lowering Front [mm]20-35
Lowering Rear [mm]15-30
Front Axle Load [kg]-1125
Rear Axle Load [kg]-1200
ApprovalParts certificate (§19.3)
Year of Construction
MaterialVA: Galvanised steel / HA: Aluminium

Conditions and Instructions

VA + HA height-adjustable (VA coilover struts, HA springs with height adjustment + damper)

When used with standard wheel/tyre combinations, additional commercially available track wideners from the accessories may be required

Shock absorbers have easy-to-use adjustment wheels. Due to the design, the rebound stage can only be adjusted when the piston rod is accessible.

Electronic damper control must be decommissioned. Electronic kit for decommissioning is included in the scope of delivery.

Clubsport suspension with support bearing: only available with VA support bearing

V4 / V5 suspension struts / dampers made of aluminium or combined on each axle made of galvanised steel (VA) and aluminium (HA)

Application List

ManufacturerModelEngine
BMW3er (G20, G80) G3L 11/2018-M3 COMPETITION M XDRIVE - 375kW / 510PS - 2993ccm
BMW3er (G20, G80) G3L 11/2018-M3 Competition xDrive - 390kW / 530PS - 2993ccm
BMW4er Coupe (G22, G82) 07/2020-M4 Competition M xDrive - 375kW / 510PS - 2993ccm
BMW4er Coupe (G22, G82) 07/2020-M4 Competition M xDrive - 390kW / 530PS - 2993ccm
Mehr Informationen
Artikelnummer30901200EQ
Lieferzeit9-10 weeks
Gewicht30.000000
HärteverstellungZug- und Druckstufe
AusführungV5 Clubsport
Hersteller
Name
KW automotive GmbH
Adresse
Aspachweg 14, 74427 Fichtenberg, DE
