STREETEC autoleveling Box
€2,979.00
SKU
2317 0 0001

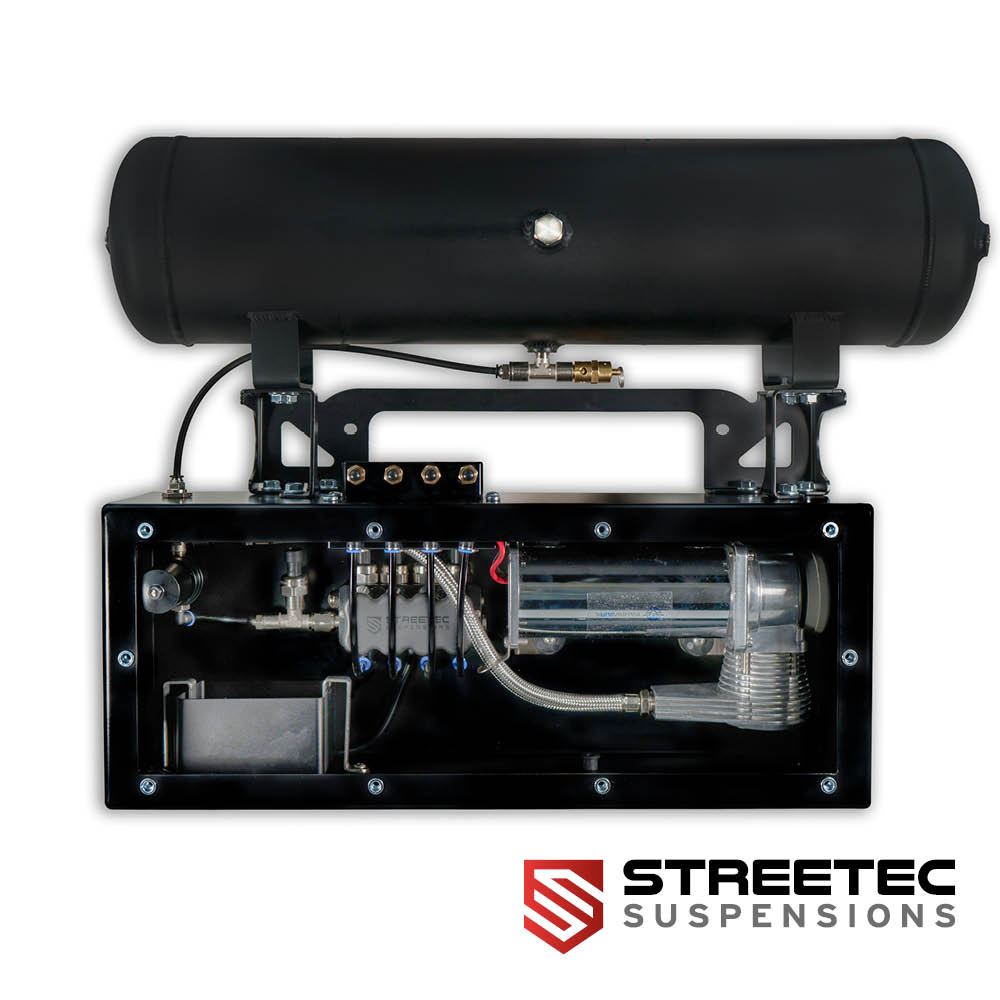

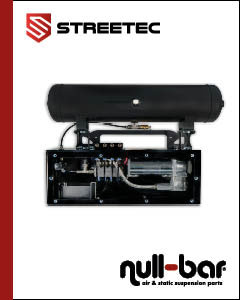

The aluminum box offers a compact and inconspicuous solution for installing a STREETEC autoleveling air management kit in your vehicle. The high-quality aluminum housing ensures not only a robust construction but also discreet storage and protection of the air management kit from external influences.
The box allows for easy and tidy mounting, enabling the air management kit to be nearly invisible when integrated into the vehicle. Thanks to its efficient design, the aluminum box not only provides protection against external influences but also contributes to enhancing the overall appearance of the installation. The quieter operation due to the discreet integration of the compressor is an additional advantage.
The use of high-quality materials and precise manufacturing techniques ensures that the aluminum box is not only aesthetically appealing but also a reliable and durable solution for the concealed installation of the STREETEC air management kit. With this box, you can maximize the performance of your air suspension without compromising on a clean and inconspicuous look.
The box is supplied with STREETEC autolevelling incl. STREETEC comp2 chrome and STREETEC tank2 black!
Scope of delivery:
- Aluminum box
- Lid
- Distribution block
- Control unit holder
- Compressor holder
- Steel flex holder
- Cable grommet
- Water trap
- Check valve
- Emergency filling valves
- Hose
- Fittings
- Mounting materials
- Vehicle-specific 3-piece bracket set including mounting materials
Functions and features:
-
High-resolution LCD control panel with capacitive touch screen, multi-touch support and haptic feedback.
-
Storable settings for different drivers
-
External, robust pressure sensors
-
Connections for optional height sensors
-
Adjustable overshoot control
-
Crossload monitoring
-
Level function for leveling the vehicle
-
Tank pressure monitoring
-
Integrated cruise-safe functionality
-
Possibility to process a speed signal to control various additional functions
-
Mobile app with Bluetooth® connection
-
OTA update ready (via mobile app)
-
Speed-dependent height control (speed signal must be connected)
Integrated cruise-safe functions:
1.) integrated §19.3 Kit
According to the certifications for airsuspensions you need an alarm for too low or too high air-pressure in the air springs. This alarm functionality is integrated in the STREETEC autoleveling and observes each wheel individually.
2.) Cruise-Safe functionality
With the Cruise-Safe functionality the car can be lowered only to a flexible, pre-defined airpressure. This pressure can be set for the front- and the rear-axle independently. With that functionality you can exclude the risk for damages due to missuse of the system by too much lowering.
3.) „Don’t play and drive“ function
The most certifications for airride-systems require that the airsuspension is not adjustable while driving. With the Air Lift 3P / 3H control, this is usually difficult to achieve, since the control and the prescribed pressure display are supplied by a control unit.
The STREETEC autoleveling now offers 3 different options to prevent adjustability while driving and still keep the pressure display activated.
-Input for 12V handbrake or alternator signal
-Input for speed signal (especially the best solution for modern vehicles)
-Through a signal that is supplied by the internal accelerometer and processed by the software
| Partnumber | 2317 0 0001 |
|---|---|
| Weight | 35.000000 |
